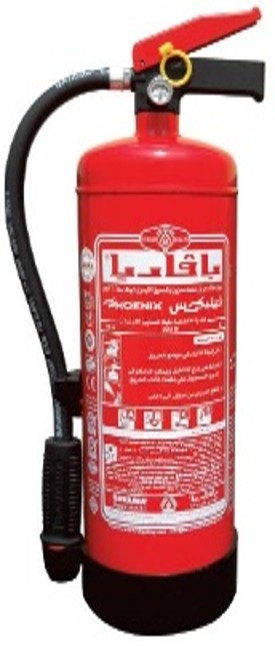

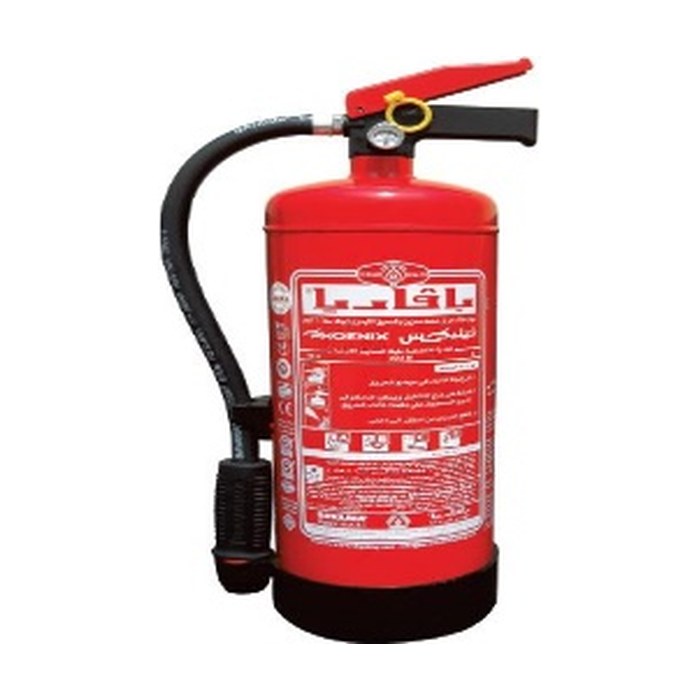

Dry powder Extinguisher
Excellent extinguishing capacity.
Easy to use and the operating compressor is designed to allow control of the powder output in batches and the amount of powder flowing.
The operating valve assembly is made of special engineering polymers. The head of the device is equipped with a manometer to indicate the internal pressure and the device’s suitability for operation.
The head group is equipped with a valve to review and release the pressure, a compressor for operation, and a carrying handle.
The device is equipped with an electrically insulating and rust-proof plastic base.
The body is treated and electrostatically coated with pure red polyester.
The device is filled with Bavaria Superlative ABCE dry chemical powder, German origin.
Suitable for fighting fires in the presence of an electric current up to 1000 volts from a distance of at least 1 meter.
The approved temperature range is -30°C to 60°C according to the European standard EN3.

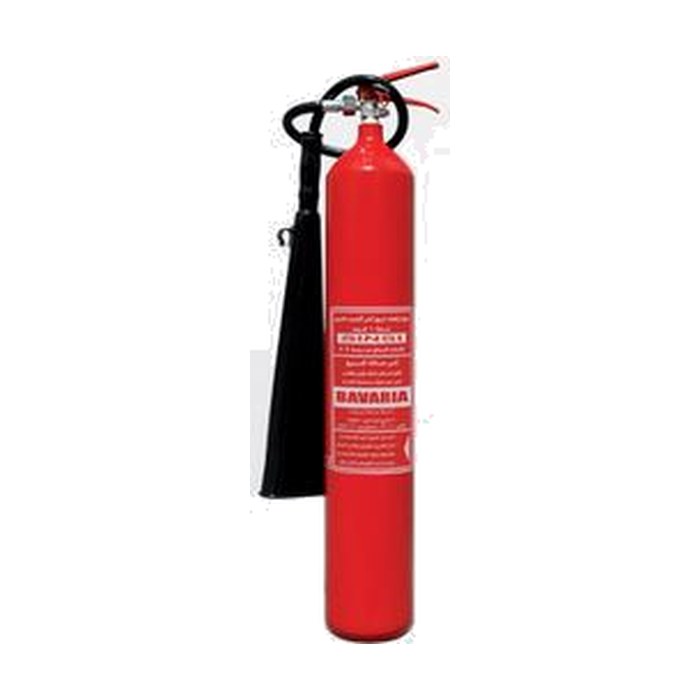

CO2 Extinguisher
Suitable for extinguishing flammable liquids and electrical fires BE.
Carbon dioxide is a clean extinguishing medium that leaves no traces.
Designed to allow control of the release of carbon dioxide gas in batches and the amount of gas flowing.
Equipped with a head made of copper alloy equipped with a safety valve that operates automatically in case the internal pressure exceeds the permissible limit.
The head is equipped with a gas outlet hole equipped with an electrically insulated conical discharge horn that covers the largest possible area while fighting the fire and with a compressor to control opening and closing.
Equipped with a handle for easy carrying.
The device is equipped with a stand equipped for wall mounting

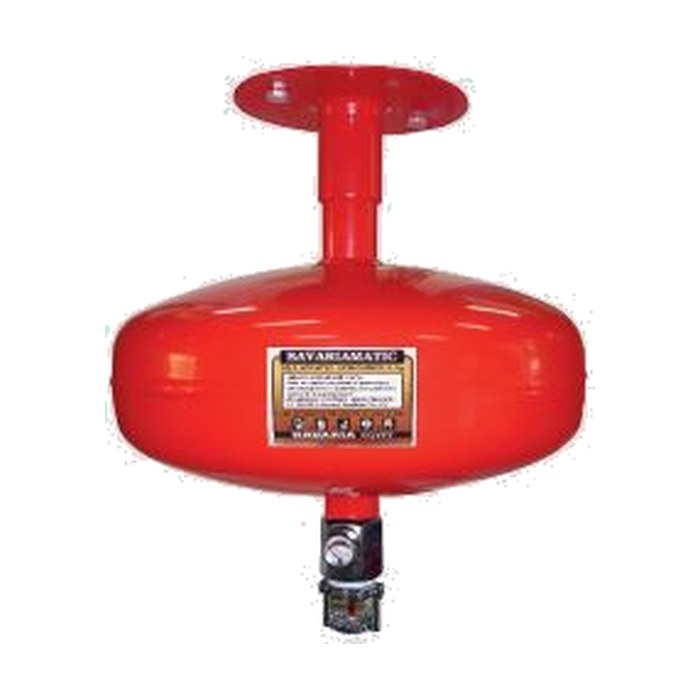

Super Matic Extinguisher
Most suitable for protecting unattended objects and rooms. Stored pressure self-actuated modular design
Equipped with chrome-plated brass valve
Pressure gauge for instant pressure indication
Pressure check valve equipped
Heat sensitive valve to act safety at 68° C
Does not require any power supply
High quality surface treatment and red polyester coating
Affords highest extinguishing rating due to its special multipurpose Bavaria
dry chemical powder “BAVARIA Superlative Powder” (ABC)

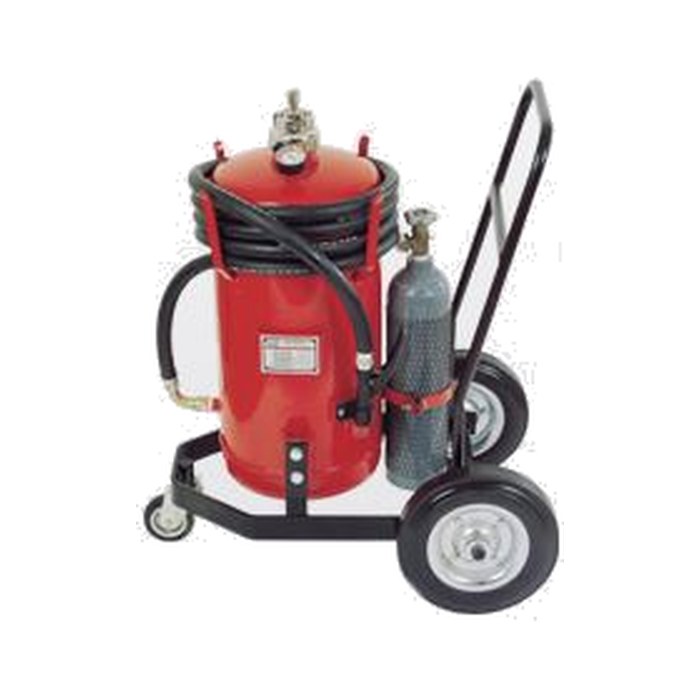

Fire Extinguishers on wheels
Easy to operate by one person with complete efficiency. High extinguishing capacity The head assembly is made of pressure cast brass plated with nickel chrome and equipped with a mechanical safety valve with a valve to release pressure from the device and a manometer to indicate the pressure during operation. Equipped with an electrically insulated gun used to control the amount of powder output and direct it. The device is equipped with an external pressure cylinder with a capacity of 3 liters mounted on a chassis with two main rear wheels and a rotating front support wheel that achieves ease of movement and maneuverability. The tires are made of anti-chemical rubber. The powder used is characterized by its superior extinguishing capacity. The powder maintains its properties of fluidity and does not knead or harden and is not affected by moisture. It is also characterized by its ability to be stored for a long time. Suitable for fighting electrical fires up to 1000 volts from a distance of at least 1 meter.

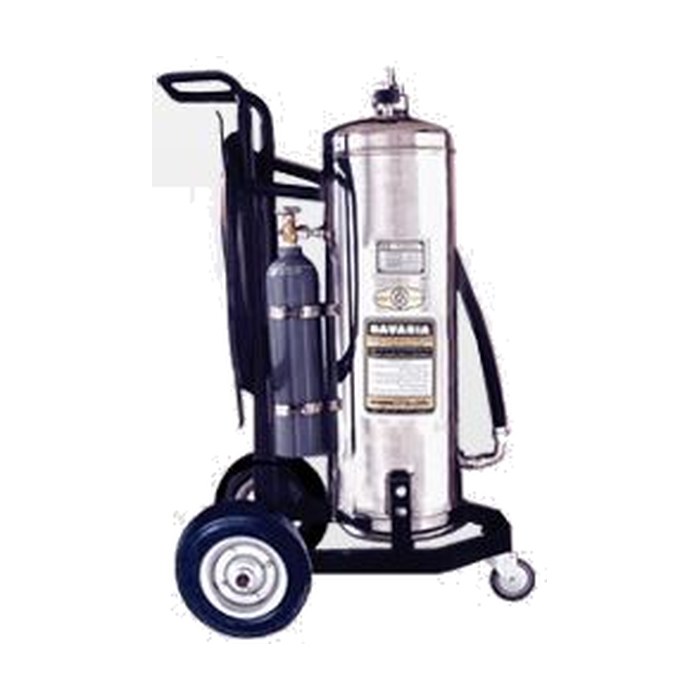

Fire Extinguishers Foam on wheels
Easy to operate by one person with complete efficiency. High extinguishing capacity. The head assembly is made of pressure cast brass plated with nickel chrome and equipped with a mechanical safety valve. Equipped with a valve to release pressure from the device after use and a manometer to indicate the pressure during operation. The device is equipped with an external pressure cylinder filled with nitrogen gas. Equipped with a hose that can withstand high pressures for easy maneuvering. The device is equipped with an electrically insulated gun used to direct the foam and control the amount and flow of liquid. Mounted on a chassis with two main rear wheels and a rotating front support wheel for easy movement and maneuvering. The tires are made of rubber that does not react with chemicals.

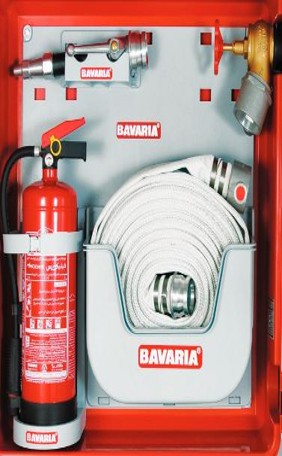

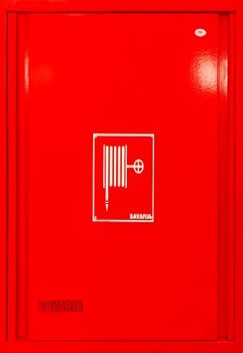

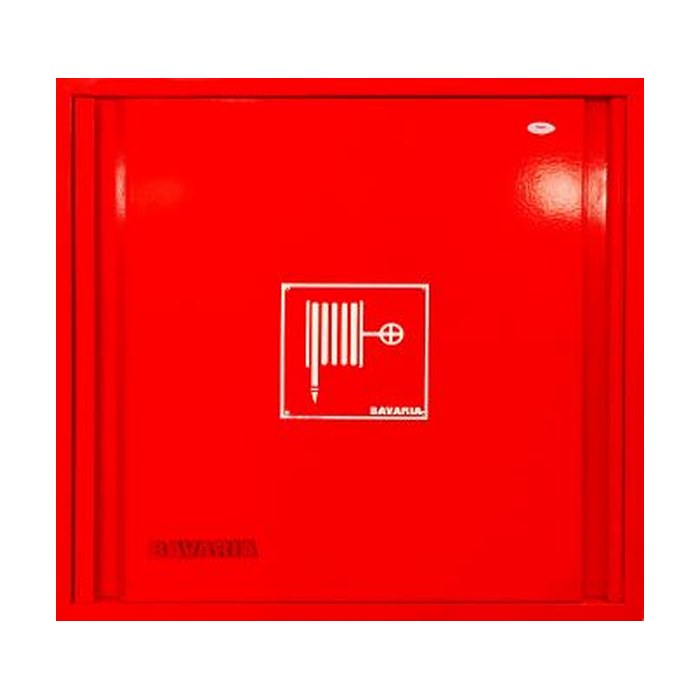

Wall Mounting Steel Fire Cabinet
The TAURUS model emulates the steel fire cabinet using high quality steel 100% electrostatic pure
polyester red coating.Bavaria wall mounting steel fire cabinet is suitable for use in both areas outdoors &
indoors, as in offices, schools, sports areas, cinemas, assembly rooms, hotels, resorts, malls, airports,
hospitals industrial and commercial fire protection needs , such as manufacturing, petrolum companies,
warehouse, apartment buildings, restaurants, ▪▪ Standard design cabinet 800 x 800 x 300 mm (WxHxD) for wall
mounting.
▪▪ The cabinet door is provided with concealed axial hings enabling
it to swing up to 180°.
▪▪ The cabinet door is provided with long built in handle and close
with two latching points.
▪▪ The cabinet has two inlet holes (upper & lower) for water
feeding pipes sealed with polymer or rubber seals.
▪▪ The fire cabinet carries photo luminescent signs that are crucial
during emergency situations and power failure.

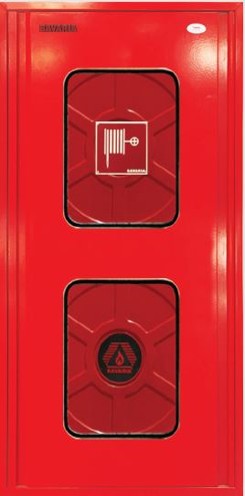

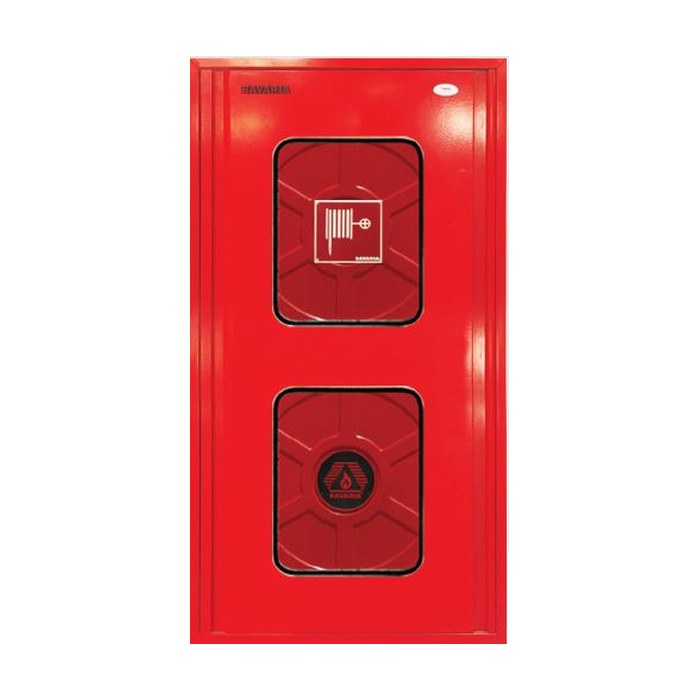

Wall Mounting Steel Double Fire Cabinet
The TAURUS double cabinet is a unique steel model with one long door, also provides glass openings for
contents’ identification. The TAURUS double cabinet is suitable for use in both areas outdoors & indoors, as in offices, schools, sports areas, cinemas, assembly rooms, hotels, resorts, malls, airports, hospitals industrial and commercial fire protection needs , such as manufacturing, petrolum companies,
warehouse, apartment buildings, restaurants, ▪▪ Standard design cabinet 800 x 1600 x 300 mm (WxHxD) for wall mounting.
▪▪ The Double Decker is a double fire cabinet with one long lid, placing two hosereels, one in the upper cabinet part followed by the hose reel below. The cabinet door also provides glass openings for contents’ identification.
▪▪ The cabinet door is provided with concealed axial hings enabling it to swing up to 180°.
▪▪ The cabinet door is provided long built in handle and close with two latching points.
▪▪ The cabinet has four inlet holes (2 in upper & 2 in lower) for water feeding pipes sealed with polymer or rubber seals.
▪▪ The fire cabinet carries photo luminescent sign that is crucial during emergency situations and power failure.

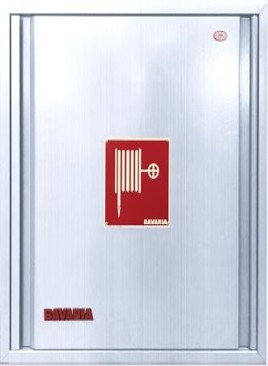

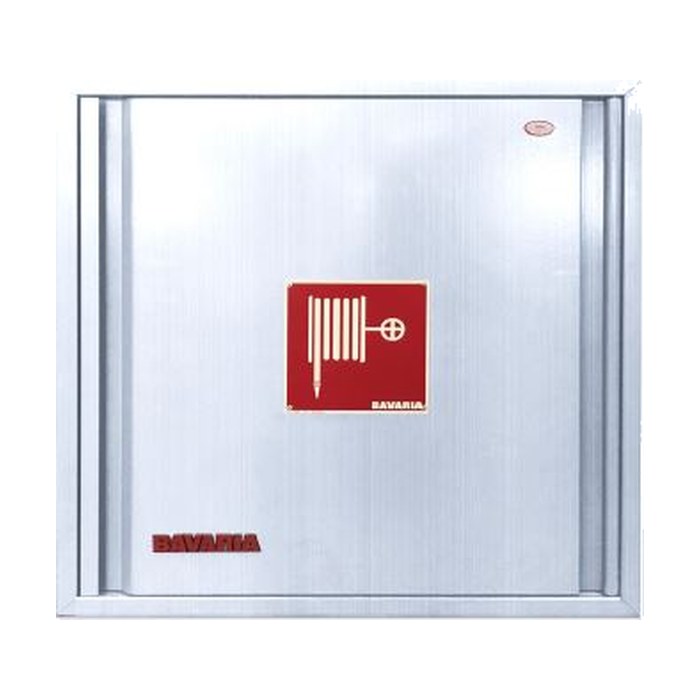

Wall Mounting stainless steel Fire Cabinet
The TAURUS model emulates the steel fire cabinet using high quality stainless steel. Bavaria Stainless steel fire cabinet with its satin stainless steel appearance is suitable for use in both areas outdoors & indoors, as in offices, schools, sports areas, cinemas, assembly rooms, hotels, resorts, malls, airports,
hospitals industrial and commercial fire protection needs , such as manufacturing, petrolum companies,
warehouse, apartment buildings, restaurants, ▪▪ Standard design cabinet 800 x 800 x 300 mm (WxHxD) for wall
mounting.
▪▪ The cabinet door is provided with concealed axial hings enabling
it to swing up to 180°.
▪▪ The cabinet door is provided with long built in handle and close
with two latching points.
▪▪ The cabinet has two inlet holes (upper & lower) for water
feeding pipes sealed with polymer or rubber seals.
▪▪ The fire cabinet carries photo luminescent signs that are crucial
during emergency situations and power failure.

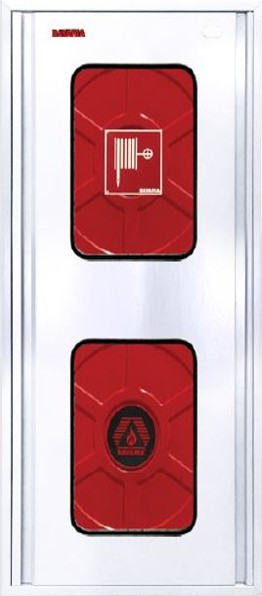

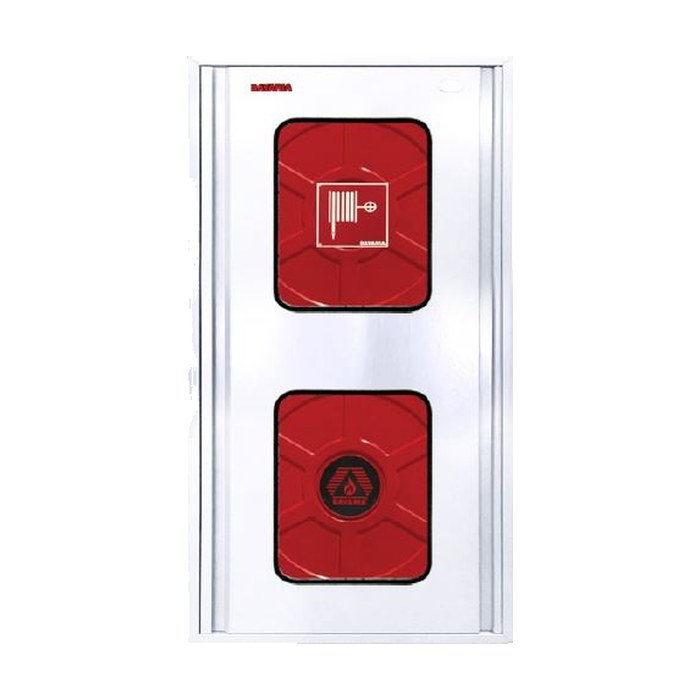

Wall Mounting stainless steel Double Fire Cabinet
The TAURUS double cabinet is a unique satin stainless steel model with one long door. The TAURUS
double cabinet is suitable for use in both areas outdoors &indoors, as in offices, schools, sports areas,
cinemas, assembly rooms, hotels, resorts, malls, airports, hospitals industrial and commercial fire protection needs , such as manufacturing, Petroleum companies, warehouse, apartment buildings, restaurants. ▪▪ Standard design cabinet 800 x 1600 x 300 mm (WxHxD) for wall mounting.
▪▪ Double Act is a satin stainless steel double fire cabinet with one long door, placing two hose reels, one in the upper cabinet part followed by the hose reel below. The cabinet door also provides glass openings for contents’ identification.
▪▪ The cabinet door is provided with concealed axial hings enabling it to swing up to 180°.
▪▪ The cabinet door is provided long built in handle and close with two latching points.
▪▪ The cabinet has four inlet holes (2 in upper & 2 in lower) for water feeding pipes sealed with polymer or rubber seals.
▪▪ The fire cabinet carries photo luminescent sign that is crucial during emergency situations and power failure.

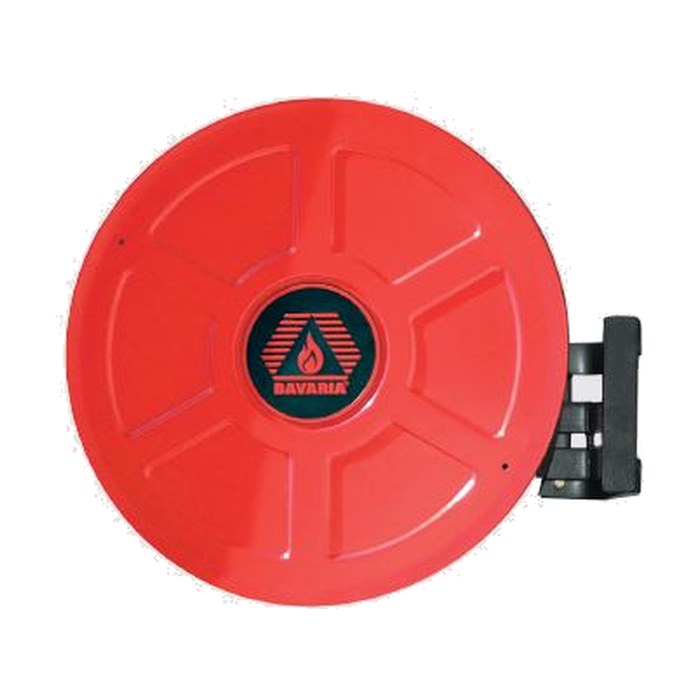

Hose reel

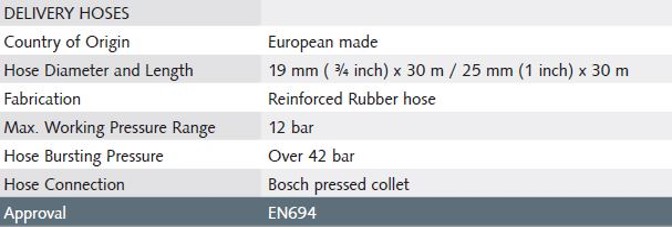

The figure show the movement of the hose reel with the arm allows the reel to swing completely outside of the cabinet allowing smooth hose retrieval in left and right directions without hose twisting. Hose reel equipped with European made 1 inch (25 mm) diameter reinforced rubber hose, EN694 approved.

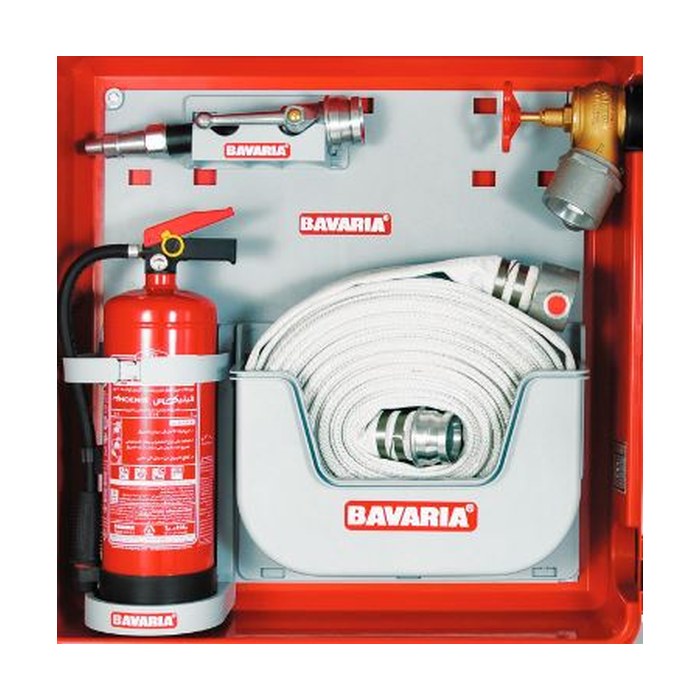

BISMARK
Bavaria’s innovative range of fire extinguisher cabinets made of engineered polymers goes beyond being a mere safety and security tool to become a unique and elegant design that enhances the look and decor of the place where they are placed. The company offers new cabinets that keep up with the spirit of the times to combine attractive appearance and effective performance at the same time. The new range of fire extinguisher designs promotes a new concept in which all elements of decor and interior design, including fire extinguisher cabinets, are harmoniously balanced. The aesthetic factor of the cabinet and its rust and weather-resistant material make it ideal for use inside and outside buildings in villages, tourist hotels, beaches, clubs, universities, oil companies, industrial and commercial facilities, buildings, schools, hospitals, airports, ships, and others. Polymer cabinets are characterized by the following:
· Resistant to sunlight.
· Passed tensile and elongation tests, according to ASTM D 638.
· Passed bending strength test, according to ASTM D 790.
· Not affected by acids, chemicals and solvents, as it passed the tests, according to ASTM D 543.
· Resistant to water absorption, according to ASTM D 570.
· Fire resistance according to the oxygen index, according to ASTM 2863-97.
· Fire resistance by exposure to flame, according to ASTM-D 635-14, using a flame chamber according to UL-94.
· Fire cabinets are designed for wall mounting.
· The cabinet door is equipped with a handle that allows for quick opening and closing.
· The door is fixed to the cabinet by hinges capable of opening up to 180°.
· All Bavaria fire cabinets are equipped with a phosphorous guide sign for easy access in case of power outage and emergency situations
· The cabinet is equipped with side feed openings from the bottom and top of the cabinet for easy connection to the water source according to the customer’s desire

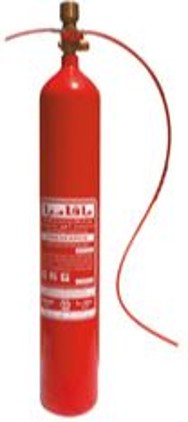

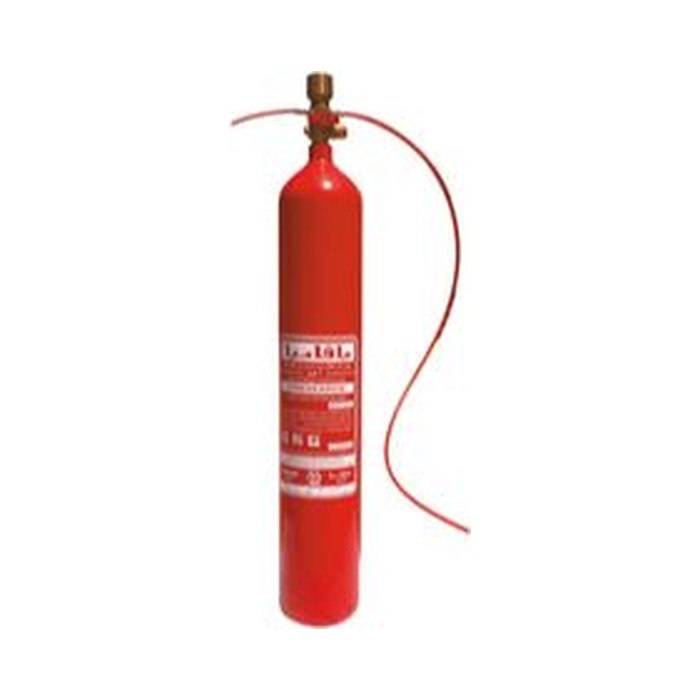

FIRE SEARCH CO2
Automatic local fire extinguishing units with sensor tube, working with dry chemical powder or carbon dioxide gas, are specially designed to protect closed and hard-to-reach areas such as electrical control panels, main computer panels, machines, generator rooms, and also suitable for protecting cars, buses, launches, ships, and suitable for use inside commercial, industrial, and residential buildings, fuel stations. It is the ideal solution for protection in high-risk indoor areas such as closed areas and limited spaces.
It does not require an external source of energy or an electrical source.
It can be connected to alarm devices and systems.
It extinguishes the fire within 15 seconds of its start.
It is economical as it does not cause any damage to the devices secured by it and reduces the losses that may result from the continued ignition of the fire.
Sensor tubes are a means of detecting the start of the fire and each point has an infinite number of sensors and sprinklers and the tube is perforated in the form of a passport to release the powder at the closest point to the start of the fire.
A system that works with dry chemical powder or a system that works with carbon dioxide gas can be used

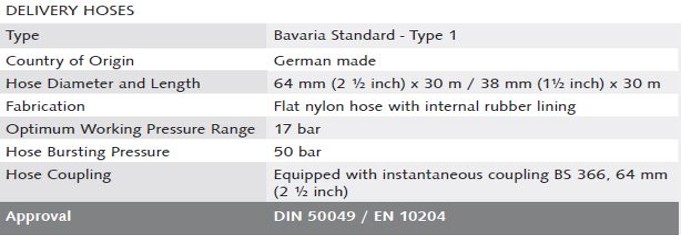

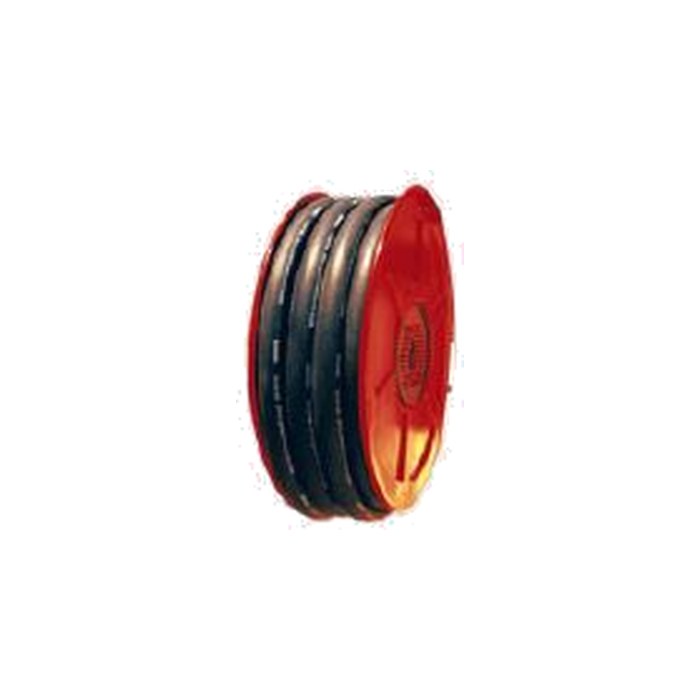

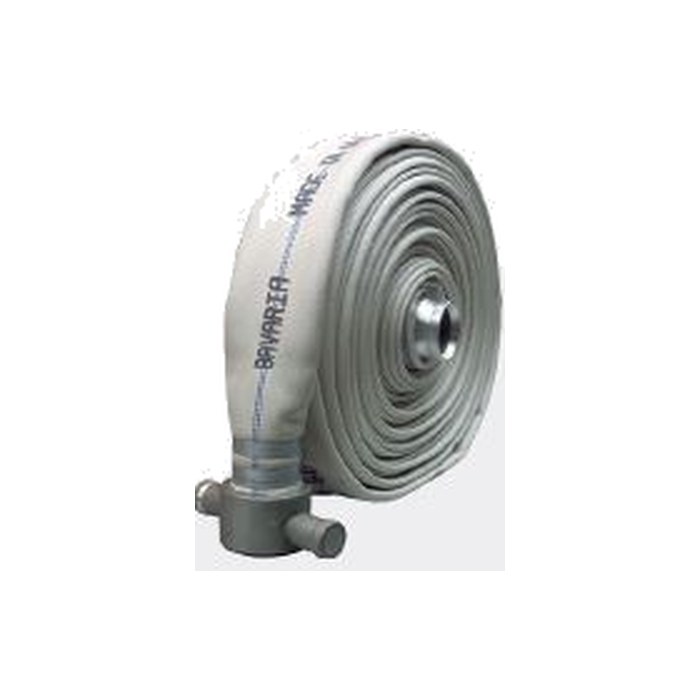

2.5 inch fire hose
1.5 inch fir hose

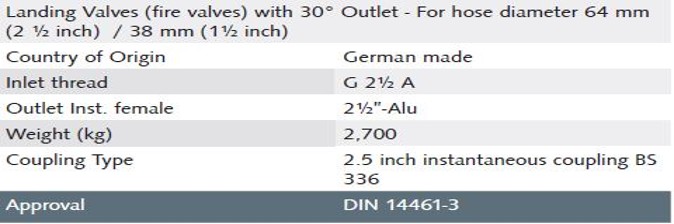

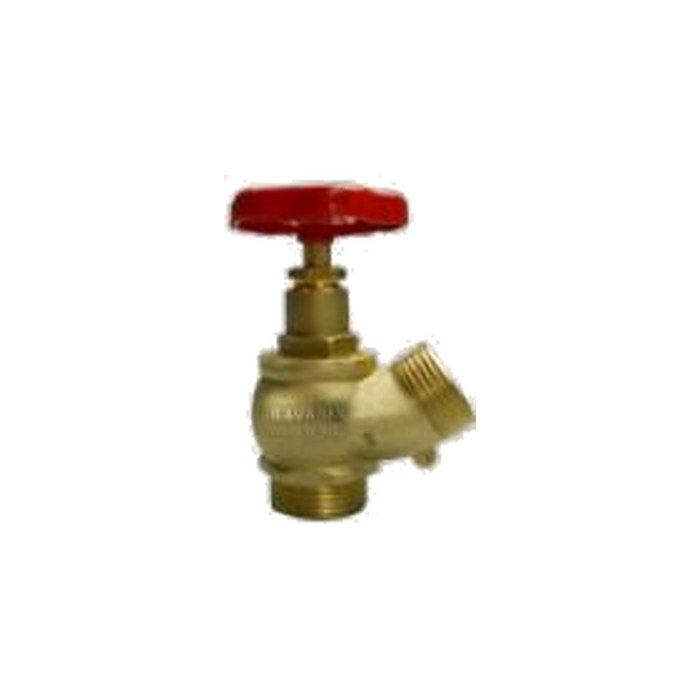

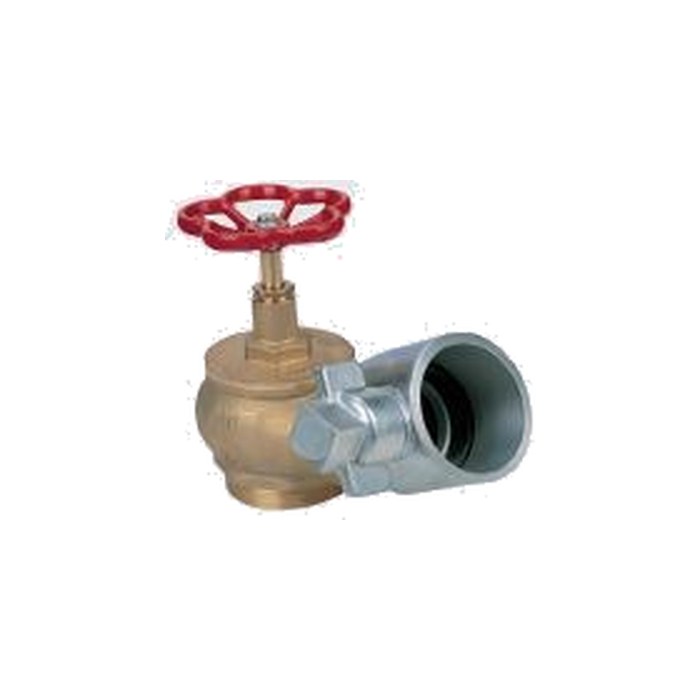

2.5 inch Landing Valves

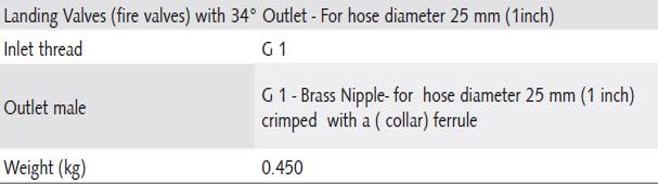

1 inch Landing Valves

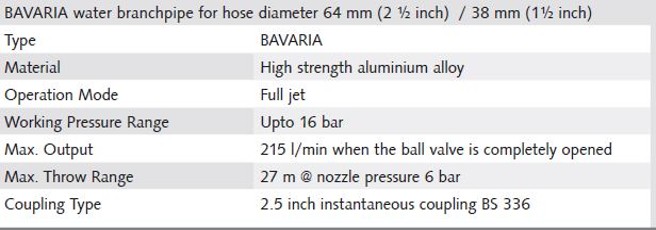

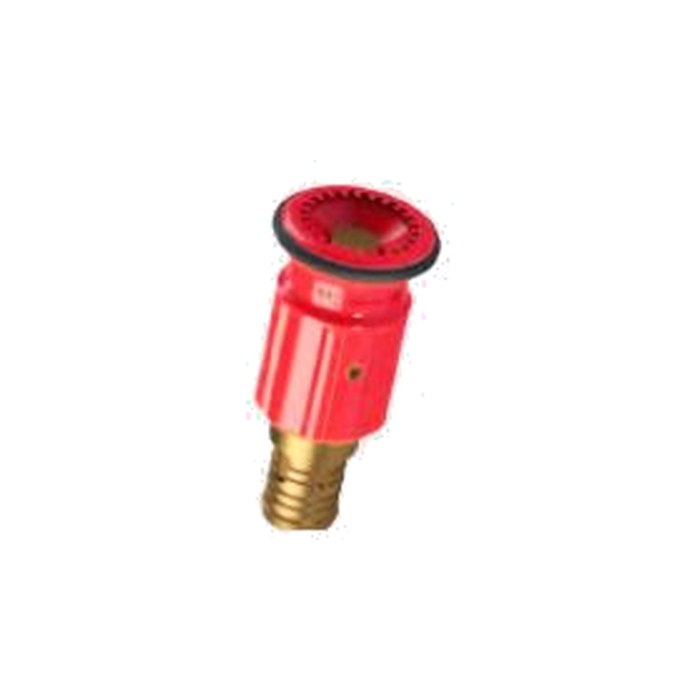

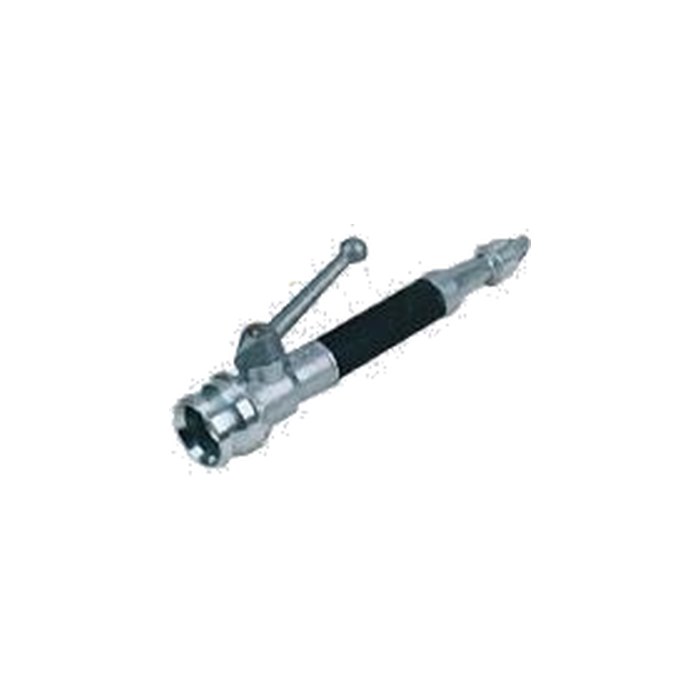

2.5 inch water nozzle

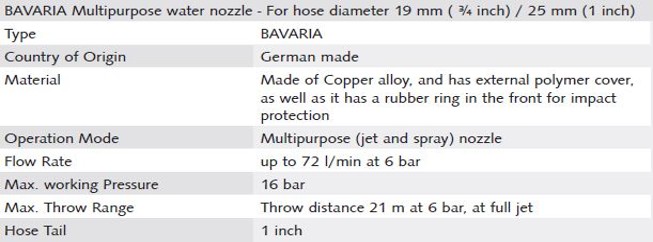

1.5 inch water nozzle

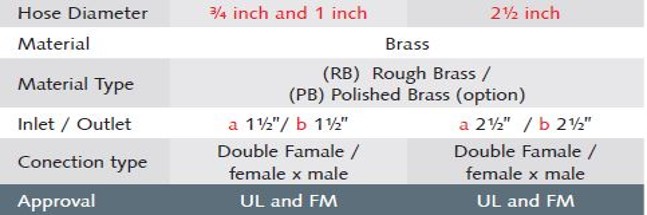

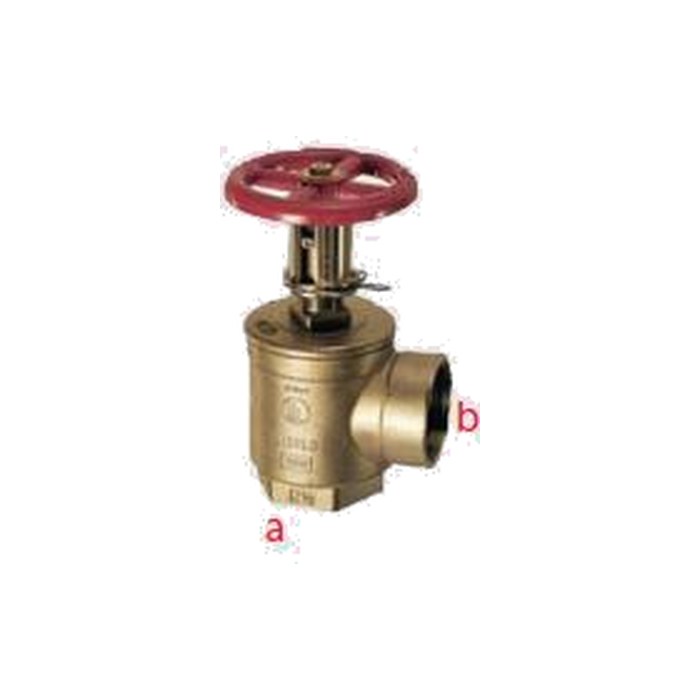

Pressure reducing device angle valve
